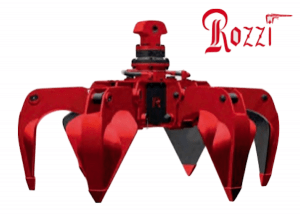

ROZZI RP Hydraulic Grabs/Grapples
Our new Rozzi RP hydraulic/grab grapples are compact units designed for truck cranes, mini and midi excavators and 360 handlers up to 23 tons.
ROZZI RP Hydraulic Grabs/Grapples
Item No:Â Â Â 13777
Our new Rozzi RP hydraulic grab/grapples are compact units designed for truck cranes, mini and midi excavators and 360 handlers up to 23 tons.
ROZZI’s RP units have semi enclosed hydraulic cylinders making them ideal for working in confined spaces as well as giving protection to the cylinders and hydraulic hoses.
Suitable for handling bulky materials such as scrap metal, urban waste, industrial waste, machine shop rejects, rocks, paper, cardboard, plastic, wood and tyres.
Four types of tine are available for the Rozzi RP hydraulic grab/grapples ranging from “slim fit” to fully enclosed and each allows the RP grabs to be perfectly matched to the product to be handled.
Available with fixed non rotating, free rotating and powered rotating couplings the Rozzi RP hydraulic grab/grapples benefit from 4 styles of tines.
ROZZI Tine Detail:
Tine Type S:Â Â Â Â Â Â Â Â Â Open –
Tine Type SL:Â Â Â Â Â Â Â Â Semi open –
Tine Type P:Â Â Â Â Â Â Â Â Â Â Semi closed –
Tine Type PA:Â Â Â Â Â Â Â Closed –
For further information or to make an appointment to view the new ROZZI Grapples and Grabs general waste recycling machinery for sale please email us or ENQUIRE NOW!
Grabs & Grapples Dimensions:
- Model – RP120:Â
- A – 1,170mm / B – 805mm / C – 1,250mm / D – 695mm / E – 560mm
- Model – RP180:Â
- A – 1,250mm /Â Â B – 950mm /Â Â C – 1,400mm /Â Â D – 795mm /Â Â E – 650mm
- Model – RP230:Â
- A – 1,260mm /Â B – 1,000mm / C – 1,430mm / D – 810mm / E – 660mm
- Model – RP250 4P:Â
- A – 1,420mm / B – 1,080mm / C – 1,630mm / D – 870mm / E – 740mm
- Model – RP250 5P:Â
- A – 1,420mm / B – 1,080mm / C – 1,630mm / D – 870mm / E – 740mm
- Model – RP250 6P:Â
- A – 1,420mm / B – 1,080mm / C – 1,630mm / D – 870mm / E – 740mm
- Model – RP280 6P:Â
- A – 1,510mm / B – 1,110mm / C – 1,710mm / D – 920mm / E – 760mm
- Model – RP300 4P:Â
- A – 1,630mm / B – 1,210mm / C – 1,850mm / D – 960mm / E – 810mm
- Model – RP300 5P:Â
- A – 1,630mm / B – 1,210mm / C – 1,850mm / D – 960mm / E – 810mm
- Model – RP300 6P:Â
- A – 1,630mm / B – 1,210mm / C – 1,850mm / D – 960mm / E – 810mm
RP Grabs & Grapples Weights:
Model – RP 500A 5P:Â Â Â Â Â Â 860Kg
Model – RP 500A 6P:Â Â Â Â Â Â 960Kg
Model – RPG 500A 5P:Â Â Â Â 960Kg
Model – RP 120:Â Â Â Â Â Â Â Â Â Â Â 130Kg
Model – RP 180:Â Â Â Â Â Â Â Â Â Â Â 250Kg
Model – RP 230:Â Â Â Â Â Â Â Â Â Â Â 300Kg
Model – RP 250 4P:Â Â Â Â Â Â Â Â 310Kg
Model – RP 250 5P:Â Â Â Â Â Â Â Â 350Kg
Model – RP 250 6P:Â Â Â Â Â Â Â Â 390Kg
Model – RP 280 6P:Â Â Â Â Â Â Â Â 410Kg
Model – RP 300 4P:Â Â Â Â Â Â Â Â 400Kg
Model – RP 300 5P:Â Â Â Â Â Â Â Â 450Kg
Data as per manufacturers specifications !
RP Grabs & Grapples Weights:
Model – RP 300 6P:Â Â Â Â Â Â Â Â 500Kg
Model – RP 380 5P:Â Â Â Â Â Â Â Â 700Kg
Model – RP 380 6P:Â Â Â Â Â Â Â Â 830Kg
Model – RPG 500A 6P:Â Â Â Â 1,160Kg
Model – RP 502 5P:Â Â Â Â Â Â Â 980Kg
Model – RP 502 6P:Â Â Â Â Â Â Â 1,100Kg
Model – RPGAÂ 502 5P:Â Â Â Â 1,180Kg
Model – RPGAÂ 502 6P:Â Â Â Â 1,200Kg
Model – RP 602 5P:Â Â Â Â Â Â Â 1,010Kg
Model – RP 602 6P:Â Â Â Â Â Â Â 1,130Kg
Model – RPGB 602 5P:Â Â Â Â 1,180Kg
Model – RPGB 602 6P:Â Â Â Â 1,300Kg
Data as per manufacturers specifications !
ROZZI RP Grabs & Grapples Machine Range Fittings:
- Models – RP 120 & RP 130
- These will fit on to 2 – 4 ton machines
- Model – RP 380
- These will fit on to 11 -16 ton machines
- Models – RP 500AÂ
- These will fit on to 15 – 20 ton machines
- Models – RP 502
- These will fit on to a 18 – 23 ton machines
- Models – RP 602
- These will fit on to 19 – 24 ton machines
Need more information? Not quite what you are looking for? We can help. We have access to a huge range of new and used recycling machinery and recycling equipment at Just-Recycling, as well as recycling businesses currently for sale. Click Enquire Now, detailing your enquiry and one of the Just-Recycling team will contact you very shortly. We look forward to helping you.
| Dimensions | 100 × 70 × 170 cm |
|---|---|
| Brand | ROZZI S.p.A. |
ROZZI S.p.A.
Rozzi SpA is a family owned company that was founded in 1970 by Enrico Rozzi. The company initially manufactured hydraulic grabs for operation with truck mounted cranes.
The success of these grabs led to the company developing additional products. Today Rozzi SpA is recognised as a leading manufacturer of hydraulic and electro-hydraulic equipment for use with varied machinery and for handling a wide range of materials.
The company has a policy of continually developing the range of products with the assistance and co-operation of customers and Agents worldwide. The production facility in Seniga, covers approximately 23,000 square metres of which 8,500 was added at the beginning of 2012.
A skilled team and modern production plant guarantee fast and customised solutions to meet our customers’ needs. The leading manufacturers of truck cranes, loaders, excavators, overhead cranes and dockside cranes use Rozzi equipment.
Low maintenance, efficiency, quality, reliability, innovation, safety and the use of special steels are all factors that distinguish the range of Rozzi products.
